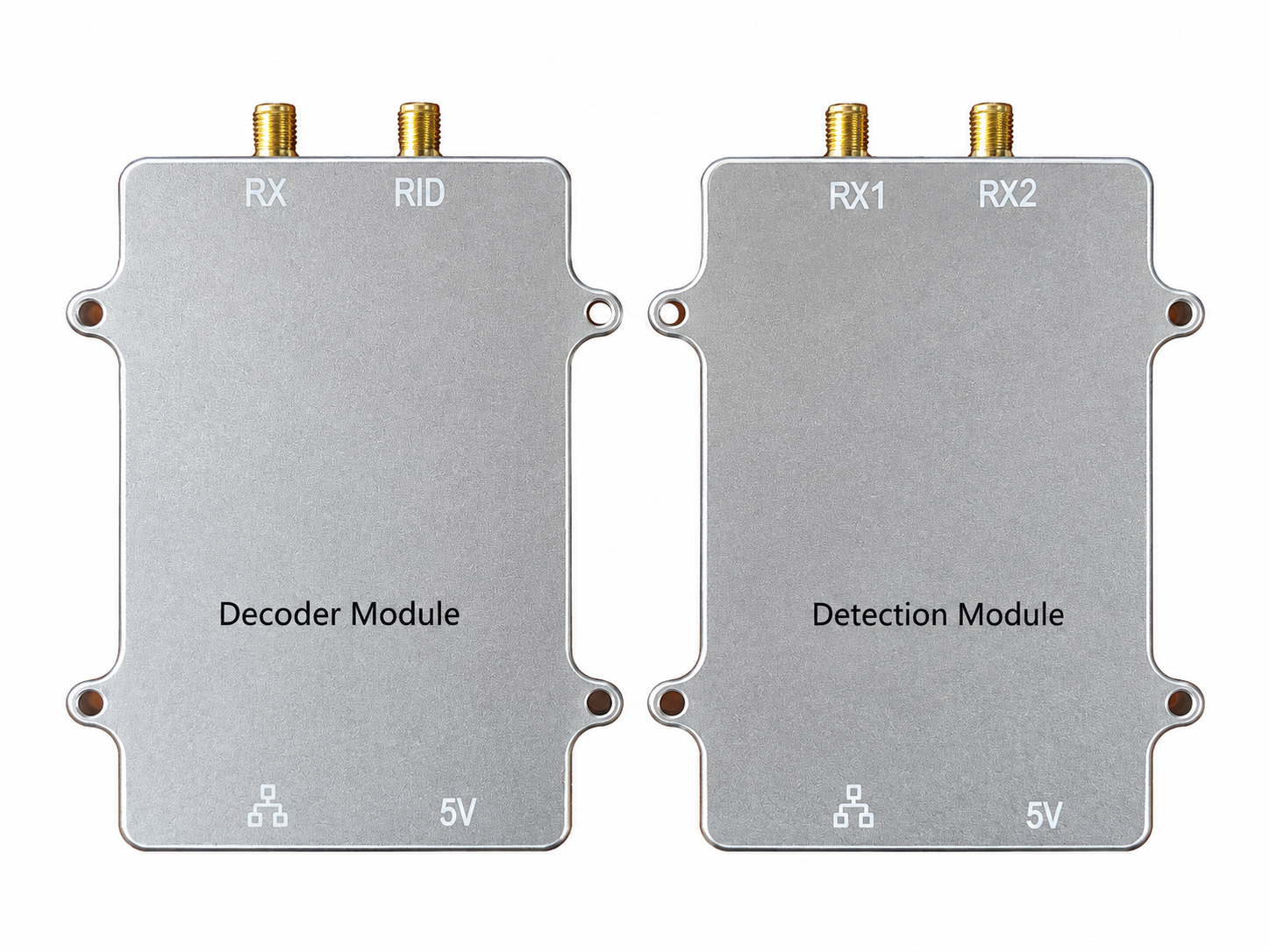

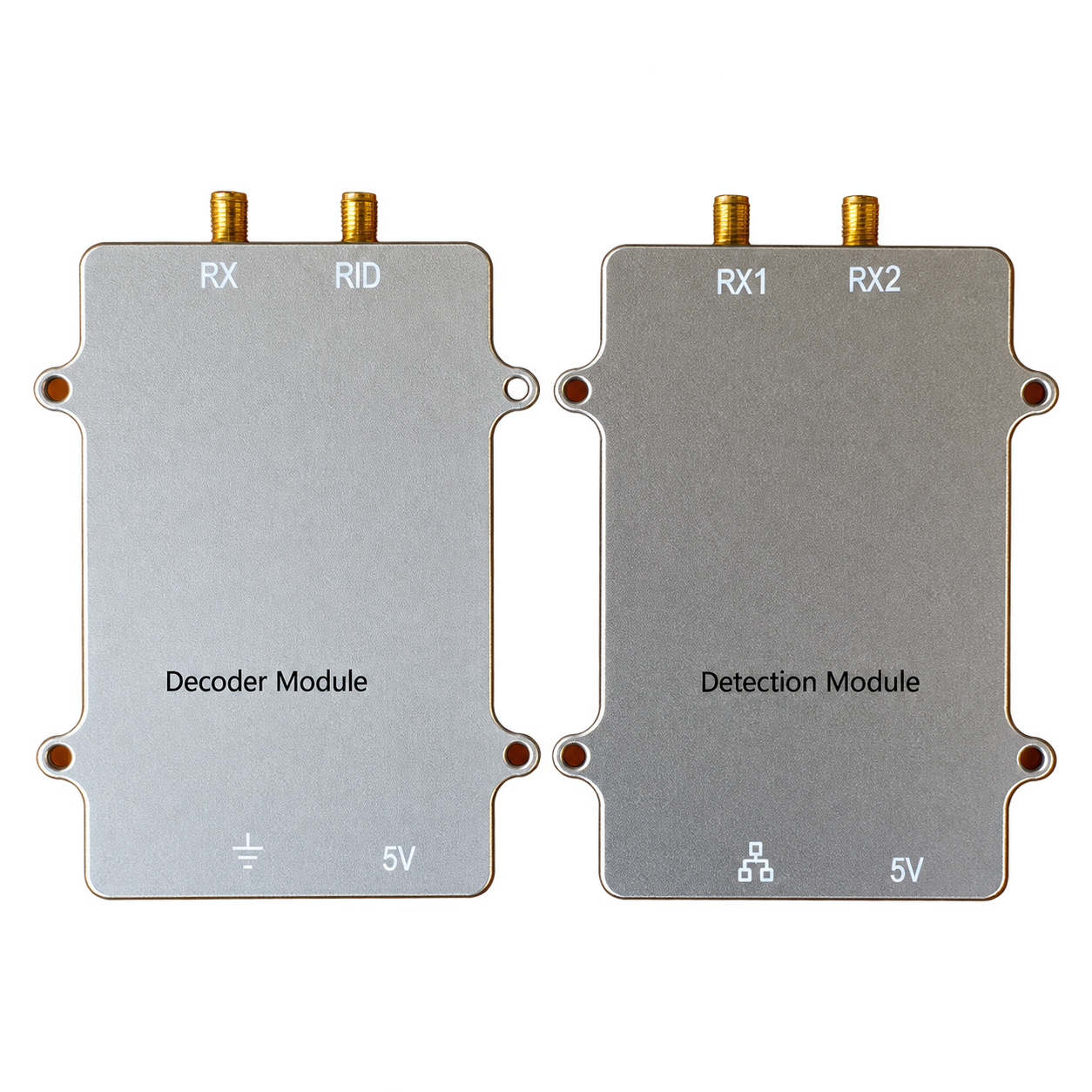

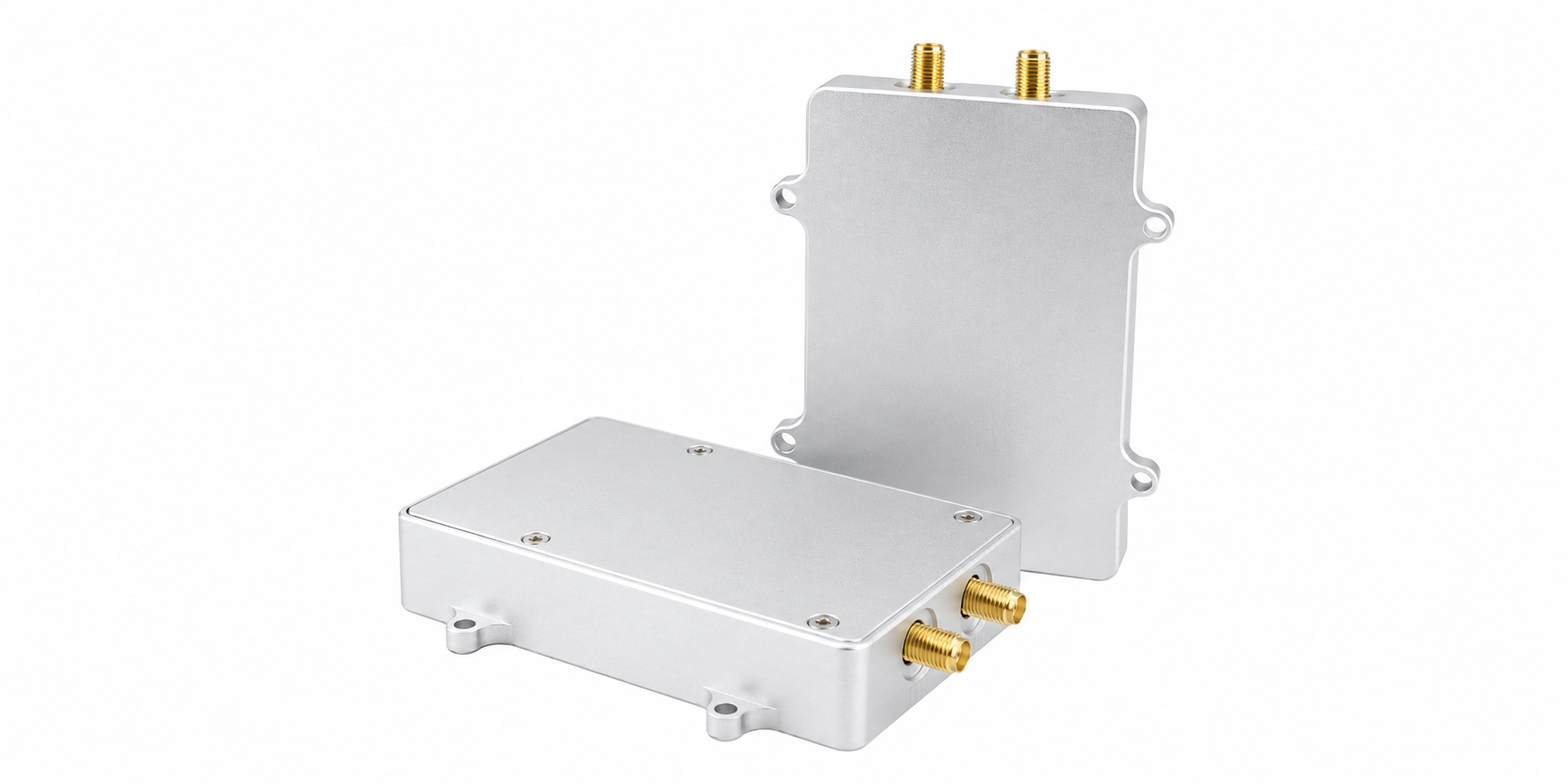

TTSK WT01+WT02 Drone Detection & Decode Module 70MHz-6GHz DJI RID 20km UAV Identification System
Item No.: TTSKWT01+TTSKWT02
KEY FEATURES
Wideband Drone Detection
Covers 70MHz–6GHz for broad signal monitoring, supporting DJI, Autel, Lightbridge, Analog FPV, LoRa, Modified LTE and other supported signal types.
Long-Range Detection Capability
WT01 supports detection from 1–10 km, while WT02 supports DJI detection from 2–20 km and RID detection from 1–5 km under specified conditions.
DJI O3/O4 & RID Decoding
Supports DJI O3/O4 data processing and RID decoding, including drone location, pilot location, home point, serial number, and model information
Real-Time Spectrum & Direction Finding
Outputs real-time spectrum data and supports GPIO-controlled 8/16-antenna direction finding for expanded detection and locating applications.
Compact System Integration
Both modules support on-device processing, UDP/TCP/TTL communication, 5V power input, and compact 89 × 55 × 18 mm dimensions for flexible system integration.
PRODUCT DETAIL
TECHNICAL SPECIFICATIONS
| Item | Specification |
| Product Combination | TTSK-WT01 + TTSK-WT02 |
| System Type | Drone Detection + DJI/RID Decode Module |
| Detection Frequency Range | 70 MHz–6 GHz |
| WT01 Detection Range | 1–10 km |
| DJI Detection Range | 2–20 km |
| RID Detection Range | 1–5 km |
| Supported Detection Signals | DJI, Autel, Lightbridge, Analog FPV, LoRa, Modified LTE, Wi-Fi and other supported signals |
| DJI Protocol Support | DJI ID, O3, O3+, O4, O4+ |
| RID Support | GB42590-2023 / ASTM F3411-22a |
| DJI O3 Data Output | Drone location, pilot location, home location, serial number, drone model, etc. |
| DJI O4 Data Output | 176-byte encrypted data; supports server-side decoding |
| Spectrum Output | Real-time spectrum data |
| Sampling Rate | 61.44M |
| Direction Finding | GPIO-controlled 8/16-antenna direction finding |
| Processing | On-device processing |
| Data Interface | UDP / TCP / TTL 3.3V, 115200 |
| Module Size | Module Size |
